Canon Housing

Whether underwater housingport or Seaflash: Each SEACAM product is unique. The expert hands of their experienced employees assemble all the pieces in meticulous steps and a single technician is tasked with building your specific SEACAM product. Craftsmanship and attention to detail are essential to the entire process. Because: This is the only way to create an underwater housing that meets your – and their – high standards.

Canon 1DX III

From £6,220 + VAT

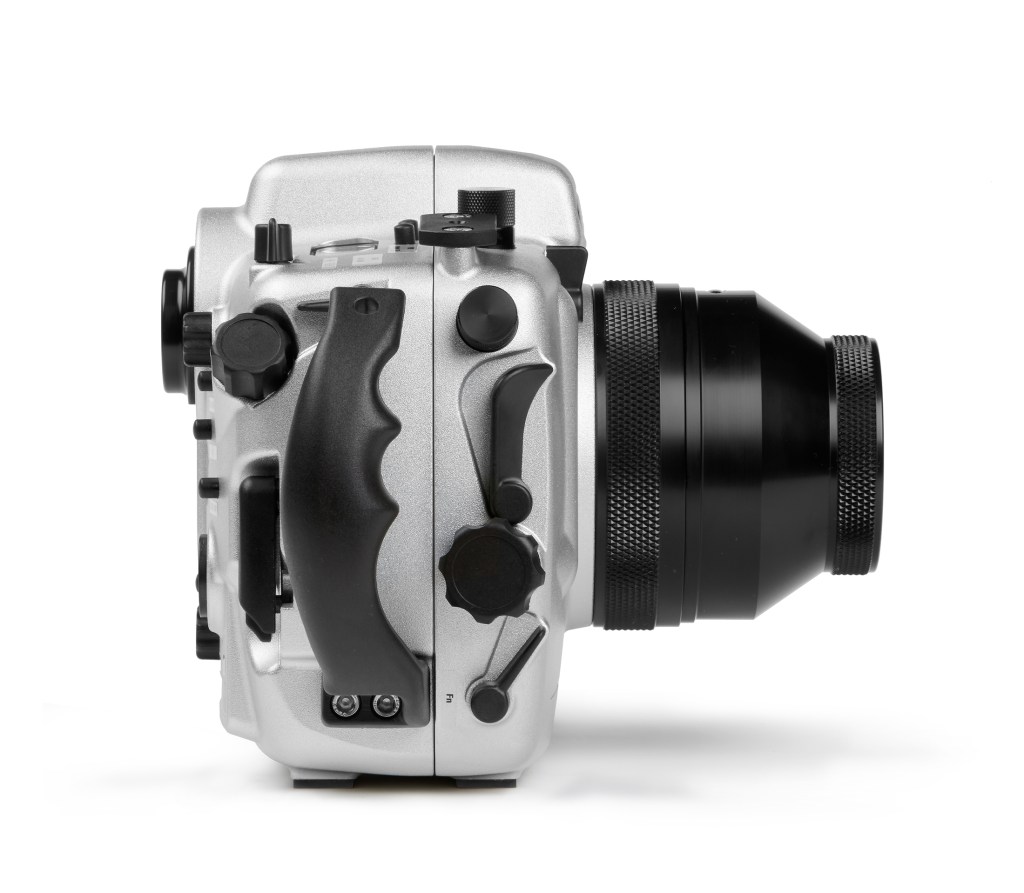

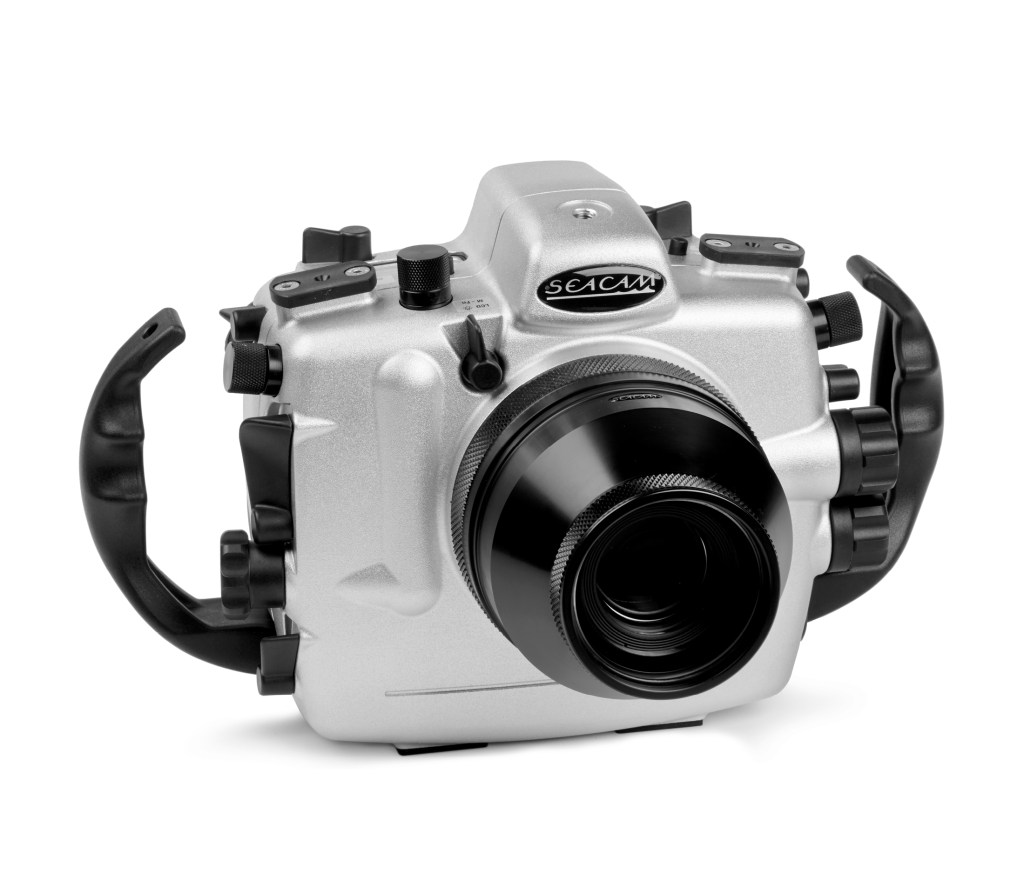

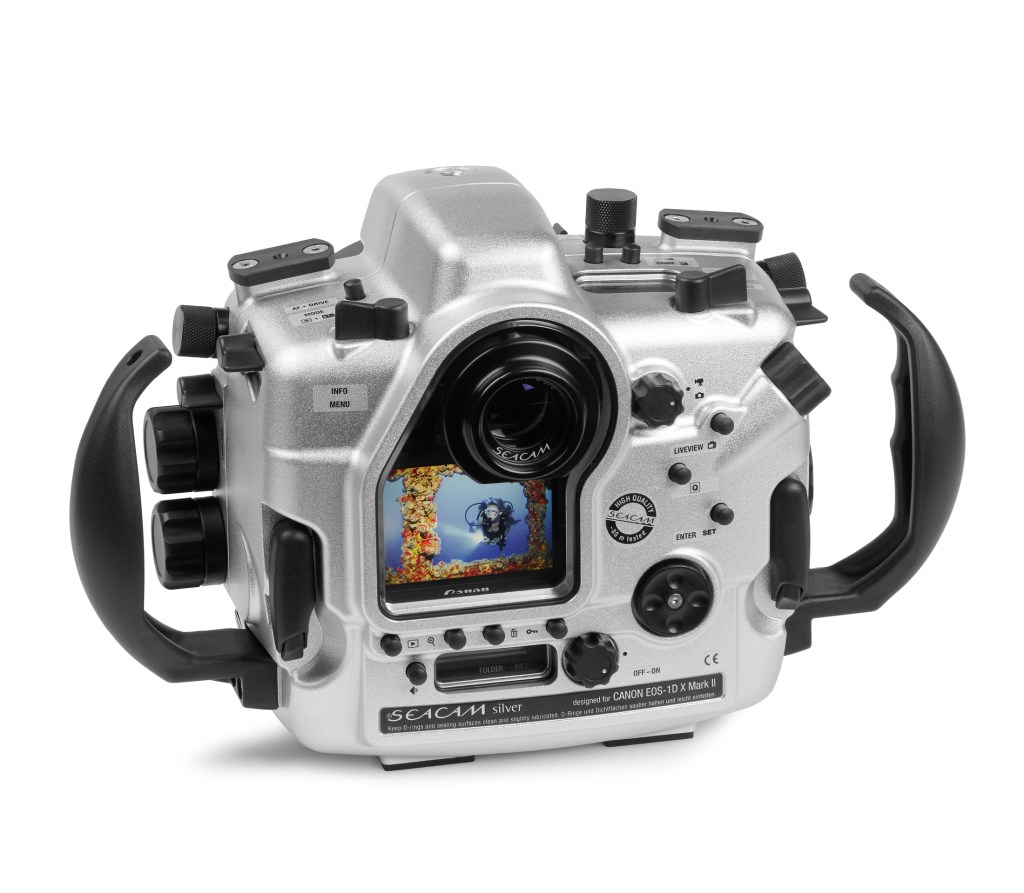

The SEACAM silver housing for the Canon professional class is perfectly adapted to both the latest 1Dx Mark III and its predecessor, the 1Dx Mark II.

Maximum functionality and ergonomic handling make Canon’s top models the ideal partner for professional use, even under water

FUNCTIONTECHNICAL DATA
Knobs and control levers
Power switch, shutter release, main- and sub-command dial, manual focus, zoom, lens release button, LCD light / M-Fn button, multifunction button 2, INFO / MENU, ISO / AF-ON, AE-lock / AF-area selection, MODE / flash exposure – +/- correction, live view / movie selection, multi controller.
Dimensions
260 x 210 x 140 mm
without port, viewfinder and handles
Push buttons
WB / +/correction, DRIVE / AF, START-STOP, Q-quick control, SET, play, index+/-, delete, protect, card selection.
Weight
2950g
without port, viewfinder and handles, neutral under water depending on port and viewfinder.
Data
Clear LCD monitor window and inclined, glare-free upper display window.

2 flash sockets S6 or N5, 2 flash arm T-pieces 25mm, tripod thread 3/8 ″, M8 thread on the housing top, 2 removable handles and optical-acoustic leak detector.

Remote- or LAN-, Power-, HDMI socket and vacuum test optional

Spare O-ring set, grease and maintenance oil, allen key set and wrist strap in neoprene bag, protective caps and manual.
Operation Depth
-80m / – 260 ft
deeper operation depth upon request.







Download Canon Port Chart
